RC series product line up

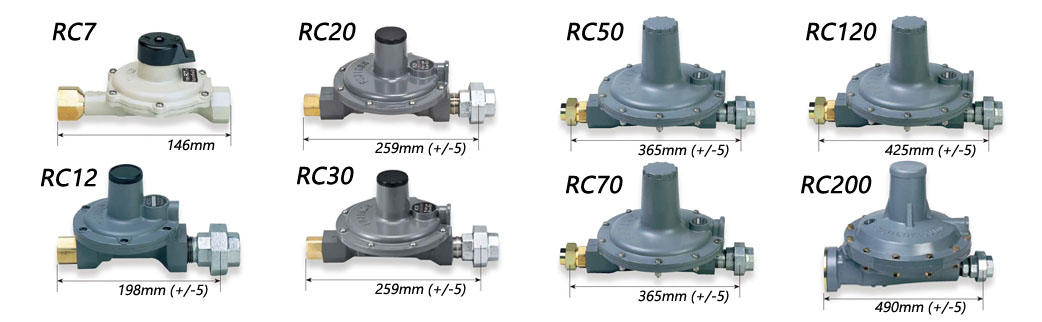

Image of RC series Second stage pressure regulators
Specification
| MODEL | RC7 | RC12 | RC20 | RC33 | RC50 | RC70 | RC120 | RC200 |
|---|---|---|---|---|---|---|---|---|
| Capacity BTU/h – kg/h based on Propane 100% |
334,000 BTU/h 7 kg/h |
572,000 BTU/h 12 kg/h |
954,000 BTU/h 20 kg/h |
1,575,000 BTU/h 33 kg/h |
2,386,000 BTU/h 50 kg/h |
3,341,000 BTU/h 70 kg/h |
5,728,000 BTU/h 120 kg/h |
9,547,000 BTU/h 200 kg/h |
| Inlet pressure | 3.6 – 14 Psig 0.025to0.10MPa |
|||||||
| Outlet Pressure | 0.4±0.07 Psig 2.8±05kPa |
|||||||
| Max Blockade Pressure | Rc 1/2 | 3/4B (20A) High Pressure Union |
1-1/2 (40A) High Pressure Flange |
|||||
| Inlet Connection inch (JIS) |
Rc 1/2 | 1B union | 1-1/4B union | 2B union | ||||
| Dimension (mm) | L=146 | L=198±5 | L=259±5 | L=259±5 | L=365±5 | L=365±5 | L=425±5 | L=490±5 |
**120kg / 200kg capacity models also available.
