RE series product line up

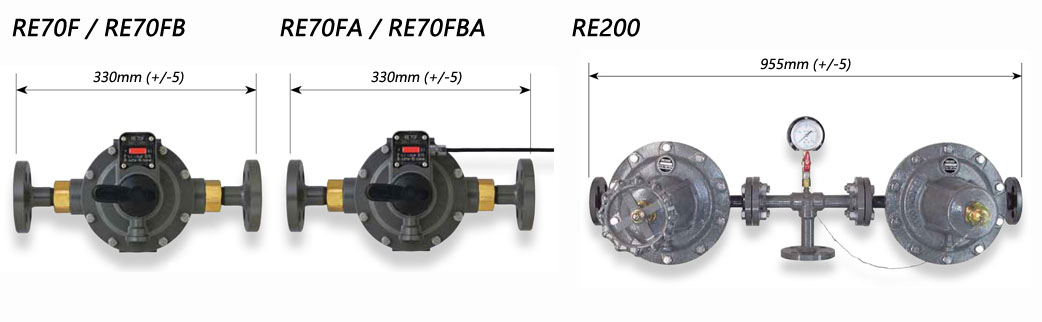

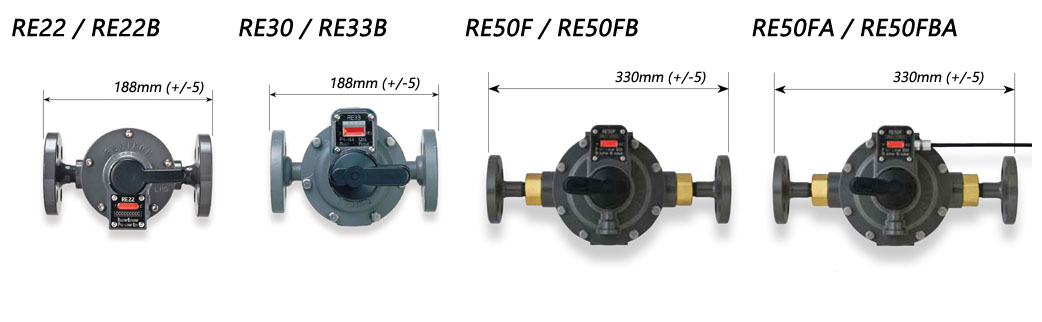

Image of RE Medium pressure Gas Changeover regulators
Specification
| MODEL | RE22 | RE30 | RE50 | RE71 | RE120 | RE200 | RE22B | RE33B | RE50B | RE71B |
|---|---|---|---|---|---|---|---|---|---|---|
| Capacity BTU/h – kg/h based on Propane 100% |
954,000 BTU/h 20 kg/h |
1,575,000 BTU/h 33 kg/h |
2,386,000 BTU/h 50 kg/h |
3,341,000 BTU/h 70 kg/h |
5,728,000 BTU/h 120 kg/h |
9,547,000 BTU/h 200 kg/h |
954,000 BTU/h 20 kg/h |
1,575,000 BTU/h 33 kg/h |
2,386,000 BTU/h 50 kg/h |
3,341,000 BTU/h 70 kg/h |
| Inlet pressure | 15 – 227Psig 0.1 – 1.56MPa |
30 – 227Psig 0.2 – 1.56MPa |
||||||||
| Outlet pressure | 4.7 – 12Psig 0.032 – 0.083MPa |
13 – 23Psig 0.09 – 0.16MPa |
||||||||
| Maximum blockage pressure | 13.8Psig or below 0.095MPa or below |
24.7Psig or below 0.17MPa or below |
||||||||
| Inlet bore (JIS) |
Rc 1/2 | R 3/4 | 1-1/2 (40A) High pressure flange |
Rc 1/2 | R 3/4 | |||||
| Width (mm) |
L=188±5 | L=330±5 | L=1065±5 | L=955±5 | L=188±5 | L=330±5 | ||||
| Remarks | ** RE22A with Signal Transmitter |
** RE33A with Signal Transmitter |
– | – | – | – | ** RE22BA with Signal Transmitter |
** RE33BA with Signal Transmitter |
– | – |
