RH series product line up

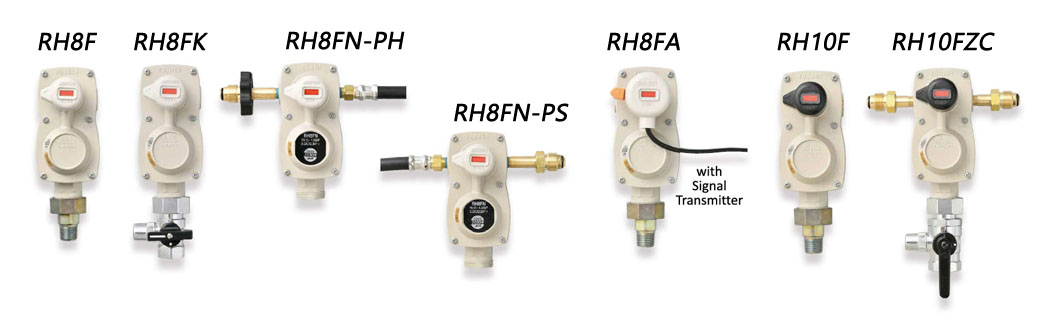

Image of RH series Gas Changeover regulators (domestic)
** RH8FA and RH10FA have signal transmission function
Specification
| MODEL | RH8F | RH8FK | RH8FN-PH | RH8FN-PS | RH8FA | RH10F | RH10FZC | RH10FA |
|---|---|---|---|---|---|---|---|---|
| Capacity BTU/h – kg/h based on Propane 100% |
382,000 BTU/h 8 kg/h |
477,000 BTU/h 10 kg/h |
||||||
| Inlet pressure | 22 – 227Psig 0.15 – 1.56MPa |
|||||||
| Outlet pressure | 0.37 – 0.487Psig 2.55 – 3.30kPa |
|||||||
| Maximum blockage pressure | 0.5Psig or below 3.5kPa or below |
|||||||
| Inlet bore (JIS) |
Rc 1/4 | POL Handle x Rc 1/4 | POL Wrench x Rc 1/4 | Rc 1/4 | POL Wrench | Rc 1/4 | ||
| Outlet bore (JIS) |
R1/2B union | Rc 1/2 | R1/2B union | 1/2B union | Rc 3/4 | 1/2B union | ||
| Remarks | – | Inspection hole and Gas cock | – | – | With Signal Transmitter | – | Inspection hole and Gas cock | With Signal Transmitter |
